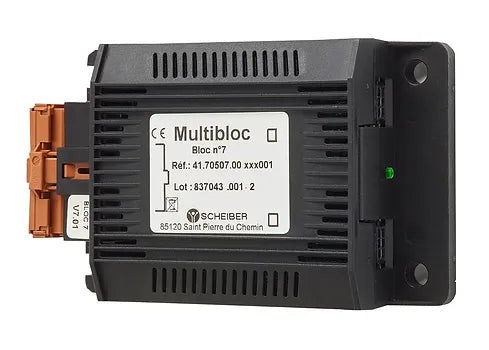

Multibloc Bloc 7 - 41.70507.02 008 (Scheiber)

Scheiber Analoge input module

The Bloc 7 is a measuring bloc integrating 6 universal inputs.

They allow the measurement of:

- voltages between 0 and 30 VDC in order to acquire analog measurements (battery voltage)

- voltages between 0-10 VDC (sensor voltage).

- water levels (fresh water, gray water, black water, fuel) by configuring the

input as a current generator.

Bloc 7 also integrates 3 digital inputs to view the state of sensors (bilge pump).

Via the LIN Bus you can add up to 6 IBS sensors.

If bloc 7 is connected to a Navicolor screen, all measurements can be viewed from the touchscreen.

• 6 configurable analog inputs :

0-30VDC (battery voltage)

0-10V (current sensor)

0-180Ω (fresh water or fuel sensor)

30-240 Ω (grey water sensor)

​

• 3 digital inputs :

1 input (+) type pnp

2 inputs (-)

​

• BUS LIN
